FCN90LB-ST

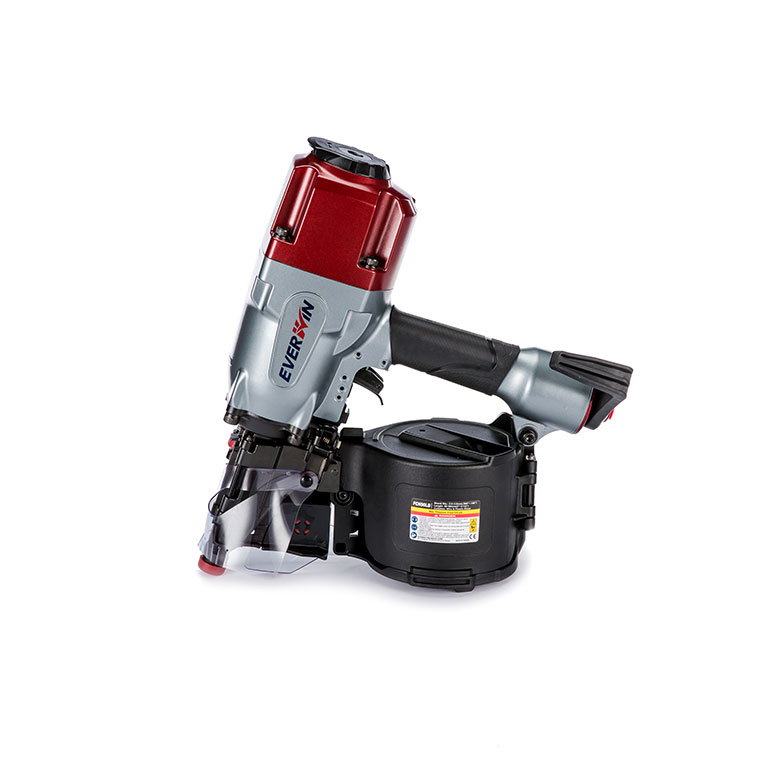

CONSTRUCTION 90mm (3-1/2") Wire/Plastic Ultra-Light Coil Framing Nailer

  • Icon 001
  • Icon 005
  • Icon 007
  • Icon008
  • Icon010
  • Icon011
  • Icon014
  • Icon016
The PTIA Award-Winning FCN90LB-ST, driving up to a 3-1/2" nail is perfect for a wide range of framing applications. This "sequential trigger" tool drives smooth, ring, and screw shank coil nails in both wire and plastic sheet collation. Weighing only 3.0 kgs, the FCN90LB-ST is easy to maneuver and causes minimal fatigue. With our patented "PRECISION NAILING TECH" the FCN90LB-ST helps you do More, Easier and Faster.
Show more Show less
  • APPLICATIONS
  • Roofing, Decking
  • Cladding
  • Sub-flooring
  • Pallet and crates
  • Timber Frame Construction
  • Wall Panel Construction
INQUIRY

FEATURES

INDUSTRY-LEADING LIGHTNESS

World's lightest 90mm coil nailer

PRECISION NAILING TECH

Patented technology minimizes driver mark formation

NO-MAR PAD

Helps prevent damage to the workpiece

DUAL COLLATION TOOL

Compatible with plastic collated nails

BELT HOOK

Engineered composite material Rotatable hook

SERRATED SAFETY TIP

Makes toe-nailing at any angle quicker and easier

RAPID CYCLING VALVE

Actuates up to 15 CYCLES/SECOND

ADJUSTABLE EXHAUST COVER

Directs air exhaust away from the user for comfort

MAGNESIUM HOUSING

Light in weight yet durable

SEQUENTIAL TRIGGER

Ensures workplace safety and accuracy

FLEXIBLE TRIGGER OPTIONS

FCN90LB-CT available as an optional "contact fire only" tool

TOOL SPECIFICATION

Weight 3.0 kgs (6.6 lbs)
Height 364mm (14.3")
Width 130mm (5.1")
Length 311mm (12.2")
Operating Pressure 5~8 bar (70~120 psi)
Driving Power (in-lbs @100psi) 850
Air Consumption (L/cycle @90psi) 1.6 (3.4 cfm)

FASTENER SPECIFICATION

Type 15° Wire & Plastic Collated Nails
Loading Capacity 150 ~ 300
Shank Type Smooth, Screw or Ring
Nail Length 50~90mm (2"~3-1/2")
Nail Head Dia. 6.5~7.7mm (0.256"~0.303")
Nail Shank Dia. Wire: 2.5~3.8mm (0.099"~0.148")
Plastic: 2.5~2.9mm (0.099"~0.113")
